Best Stick Welders Under $500 in 2026: Budget Arc Welder Picks

If you are comparing budget stick welders, the hard part is balancing usable output, power requirements, portability, and duty cycle without paying for capacity you will not use.

ARCCAPTAIN ARC200 is the best overall verified pick because it combines 110/220V input, a 20–200A range, a 60% rated duty cycle, and a 7.94-pound machine weight. For a heavier fixed-shop option, consider the Lincoln Electric AC225.

These picks were checked against current Amazon listings, manufacturer specifications, safety information, and owner trends outside Amazon; no hands-on testing is claimed.

Budget Stick Welders: Our Top Picks

Budget Stick Welders Compared

These are the verified products that remain in the recommendation set. Amazon prices can change, so confirm the current price before buying.

1. ARCCAPTAIN ARC200

Bottom line: The ARCCAPTAIN ARC200 is the most flexible verified choice here for home repairs, hobby fabrication, and a machine you may need to move. Its dual-voltage input and low weight make it easier to use in more than one location.

• Input power: 110/220V, works with two common shop power levels
• Output range: 20–200A, covers a broad range of stick settings
• Duty cycle: 60% rated, useful for repeated repair work
• Weight: 7.94 lb, easy to carry between work areas
• Process: Stick and Lift TIG, with TIG torch sold separately

ARCCAPTAIN lists support for electrodes from 1.6 to 5 mm and includes a 10-foot electrode holder, 10-foot earth clamp, power adapter, shoulder strap, brush, and manual. That reduces the extra setup gear you need for basic stick work.

The main trade-off is that this is still a compact inverter rather than a large production machine. Match the electrode, input circuit, and duty cycle to the work instead of choosing settings only from the maximum amperage number.

2. Forney Easy Weld 180 ST

Status: Forney now lists Item 291, the Easy Weld 180 ST, under its legacy discontinued machine resources. It remains here because the original article included it, but it is no longer part of the recommendation set.

The manufacturer specifications identify it as a dual-voltage 120/230V DC Stick and DC TIG machine. Its stick output is 10–90A on 120V and 10–180A on 230V, with a 14-pound machine weight.

• Input power: 120/230V, dual-voltage operation
• Output range: 10–90A on 120V; 10–180A on 230V
• Duty cycle: 30% at 80A on 120V; 25% at 180A on 230V
• Weight: 14 lb, portable for a transformer-free stick machine
• Process: DC Stick and DC TIG, according to Forney specifications

Because the exact model is discontinued, compare any remaining marketplace offer carefully with the model number and seller terms before placing an order.

Check Price on Amazon

3. Lincoln Electric AC225

Bottom line: The Lincoln Electric AC225 suits a fixed garage, farm, or shop where a 230V circuit is available and portability is not a priority. Its simple AC transformer design favors straightforward stick welding over modern inverter features.

• Input power: 230V single phase, requires the matching shop circuit
• Output range: 40–225A, selected through stepped amperage settings
• Duty cycle: 20% at 225A, plan cooling time at full output
• Weight: 109 lb, best treated as a stationary machine
• Process: AC Stick, for compatible electrodes and materials

Lincoln Electric specifies a smooth AC arc and lists carbon steel, low-alloy steel, stainless steel, and cast iron among the materials it can weld with suitable electrodes. The K1170 also comes with an attached input cable and NEMA 6-50P plug.

The main catch is flexibility. It needs 230V power, weighs far more than a portable inverter, and provides AC output only. Those limits matter if you move between jobs or want the broader electrode behavior available from DC-capable machines.

ARCCAPTAIN ARC200 vs Lincoln Electric AC225: Is the Upgrade Worth It?

This comparison is less about a simple upgrade and more about work style. The ARCCAPTAIN favors portability and flexible input power; the Lincoln favors a traditional, stationary AC stick setup.

• Input power: ARCCAPTAIN uses 110/220V; Lincoln uses 230V single phase.
• Output range: ARCCAPTAIN is rated 20–200A; Lincoln is rated 40–225A.
• Duty cycle: ARCCAPTAIN lists a 60% rated duty cycle; Lincoln lists 20% at 225A.
• Weight: ARCCAPTAIN is 7.94 lb; Lincoln is 109 lb.

Which Stick Welder Should You Buy?

• Best overall flexibility: get the ARCCAPTAIN ARC200.
• Portable garage or field use: get the ARCCAPTAIN ARC200.
• Fixed 230V shop: get the Lincoln Electric AC225.
• Traditional AC transformer design: get the Lincoln Electric AC225.

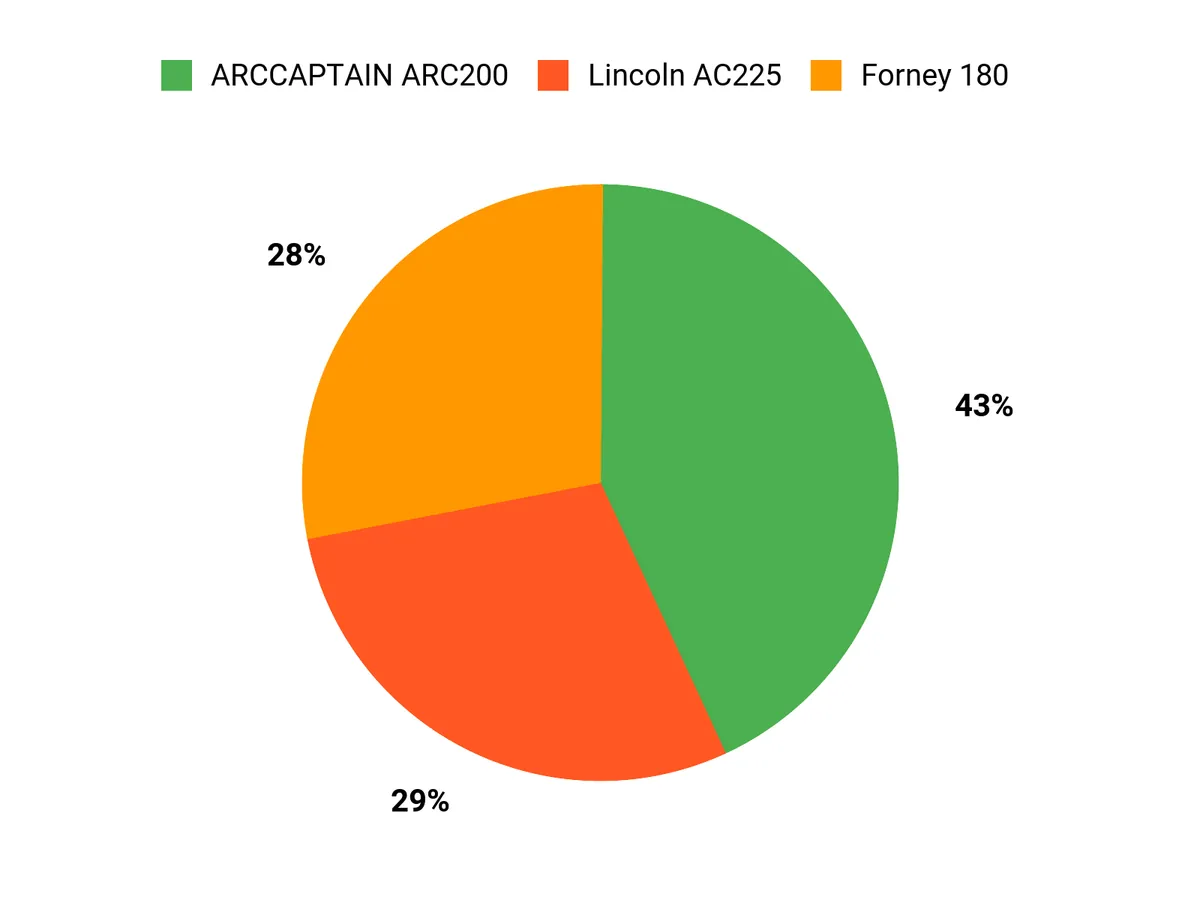

Customer Preferences

Choose by the work environment first. A light dual-voltage inverter is easier to move and use across different power sources, while a large AC transformer machine makes more sense when it will stay beside a dedicated shop circuit.

How We Chose

• Manufacturer specifications: input voltage, output range, duty cycle, machine weight, process, and included equipment were checked against primary sources.
• Current listing status: Amazon pages were checked for model match and current buying options.
• Owner trends: non-Amazon retailer and forum feedback was used only when the same pattern appeared in more than one independent source.
• Safety and product status: recall information and manufacturer support pages were checked before keeping a model in the recommendation set.
• No invented testing: the recommendations come from verified specifications and documented owner patterns, not claimed hands-on testing.

Stick Welder Safety and Maintenance

Use welding eye and face protection, gloves, protective clothing, and ventilation appropriate to the work. Keep the area clear of combustible material and follow the welder manual, electrode instructions, and local electrical requirements.

Inspect the electrode holder, work clamp, cables, connectors, plug, and vents before use. Loose or damaged connections can create heat and unstable operation. Keep cooling openings clear, let the machine cool when its duty cycle requires it, and test settings on scrap before a critical repair.

How to Choose a Budget Stick Welder

Input Power and Your Circuit

Start with the outlets you actually have. A dual-voltage welder gives you more options when you move between home, garage, or shop power. A 230V-only machine can work well in a fixed shop, but it needs the correct circuit and plug. The ARCCAPTAIN ARC200 is the more flexible choice here.

Output Range and Electrode Fit

Do not buy by maximum amperage alone. Match the output range to the electrode type and diameter you expect to use, then confirm the settings in the manufacturer manual. The Lincoln Electric AC225 reaches a higher maximum output, while the ARCCAPTAIN starts lower and covers a broad range in a much lighter package.

Duty Cycle

Duty cycle matters most when you make repeated or longer welds. Miller defines it as a rated operating period under specific test conditions, so compare the figure at the amperage you plan to use. A machine with a higher suitable duty cycle can reduce cooling interruptions, but only when the rating applies to your actual workload.

AC Versus DC Output

Output type changes which electrodes and techniques fit the machine. The Lincoln Electric AC225 is AC-only. The ARCCAPTAIN ARC200 is an inverter stick machine with Lift TIG capability. Check the electrode package for the required polarity and current type, especially with low-hydrogen rods, rather than assuming every rod runs the same way.

Portability

Machine weight changes how often you will realistically move a welder. The ARCCAPTAIN ARC200 is designed for carry-around use, while the Lincoln Electric AC225 is better left at a permanent station. If you repair gates, trailers, or equipment in different locations, weight and available power can matter as much as peak amperage.

Included Equipment and Secondary Processes

Check what arrives in the box before budgeting for accessories. ARCCAPTAIN includes the basic stick leads, adapter, strap, brush, and manual, but a TIG torch is separate. Lincoln includes the electrode holder, work clamp, and attached input cable. Secondary processes are useful only if you also have the required torch and accessories.

Mistakes to Avoid When Buying a Stick Welder

• Ignoring the circuit: confirm voltage, plug, breaker, and wiring requirements before ordering.
• Buying only by maximum amps: compare duty cycle and electrode compatibility at the settings you will use.
• Forgetting portability: check machine weight if it must move between jobs.
• Assuming every rod works: match electrode type, diameter, polarity, and current to the machine.
• Relying on an old recommendation: verify that the exact model is still current and supported.

FAQs

How do I choose the right stick welder?

Start with your available power, the electrodes you plan to run, and the thickness of the metal you usually repair. Then compare output range and duty cycle at the amperage you need. Portability matters if the machine moves between jobs. A dual-voltage inverter gives more location flexibility, while a larger transformer unit suits a fixed shop.

Is household-voltage power enough for stick welding?

Yes, household-voltage input can work for lighter repair and hobby jobs when the welder is designed for it. The available circuit still limits how much output the machine can deliver. For heavier electrodes or thicker material, a higher-voltage circuit usually gives the welder more usable capacity. Always follow the machine manual and circuit requirements.

What does duty cycle mean on a stick welder?

Duty cycle tells you how long a welder can operate at a stated output before it needs cooling, using the manufacturer’s test conditions. Compare ratings at the amperage you expect to use rather than looking only at the highest number on the front panel. Longer or repeated welds make duty cycle more important than short repair beads.

Can budget stick welders handle heavier jobs?

They can handle some heavier repair work when their input power, output range, electrode size, and duty cycle match the job. They are less suitable for nonstop production if the machine needs frequent cooling. For occasional thick-material repairs, check the manufacturer’s electrode guidance and rated output, then work within the stated duty cycle.

Can I use 7018 electrodes with these welders?

Compatibility depends on the exact electrode specification, diameter, polarity, and the welder’s output. ARCCAPTAIN lists 7018 among the supported rods for the ARC200. The Lincoln Electric AC225 is AC-only, so use an electrode grade made to run on AC and follow the electrode manufacturer’s directions rather than assuming every 7018 rod will behave the same.

What maintenance and safety steps should I follow?

Keep leads, clamps, connectors, vents, and the electrode holder in good condition. Work in a fire-safe area and use the protective equipment required for arc welding, including suitable eye, face, hand, and body protection. Before a critical weld, confirm the machine setup and electrode choice on scrap, and never exceed the electrical requirements in the manual.

Final Verdict: Best Budget Stick Welder

The best budget stick welder in this verified group is the ARCCAPTAIN ARC200 because it combines dual-voltage input, a wide output range, a 60% rated duty cycle, and very low machine weight. The Lincoln Electric AC225 remains a strong fit for buyers who specifically want a stationary 230V AC stick machine.

For the flexible pick, see the ARCCAPTAIN ARC200. For heavier fixed-shop use, compare the Lincoln Electric AC225 and confirm today’s Amazon price before ordering.
